heavy duty trolley wheels

Product Categories
Shenzhen Oh Yeah Technology Company Limited
Contact Now

heavy duty trolley wheels

Model Number : OY3-R100-FGZ

Place of Origin : China

MOQ : 300pcs

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500 pcs per day

Delivery Time : 5-7 working days

Packaging Details : stardard export carton

name : heavy duty caster wheels

guarantee : one year under normal condition use

material : gray rubber

diameter : 100mm,125mm,150mm and 200mm

plate type : swivel,fixed,side brake and dual brake

plate finish : zinc plated

braket thickness : 4.5mm,5.5mm

bearing : double ball

Contact Now

trolley wheels heavy duty rubber caster

Product description

material: non marking rubber wheel

wheel core: PP

diameter:4 inch ,5 inch 6 inch and 8 inch

finish: zinc plated

hole spacing:84*72mm

plate size:115*99mm

load capacity:200kgs-300kgs

bearing:precision double ball bearing

application: trolley wheel,material handling equipment and other factory machine

Technical parameters

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size

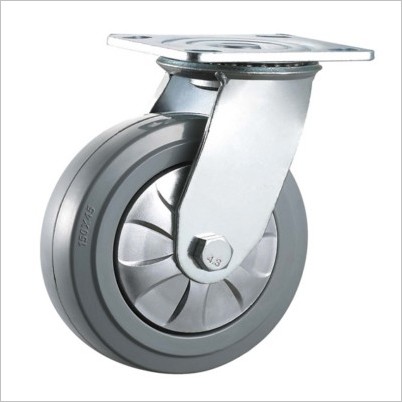

heavy duty trolley wheels OY3-R100-SGZ rubber 100mm 50mm 190kg 142mm 84*72mm 115*99mm
OY3-R125-SGZ rubber 125mm 50mm 220kg 163mm
OY3-R150-SGZ rubber 150mm 50mm 250kg 193mm
OY3-R200-SGZ rubber 200mm 50mm 300kg 240mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size

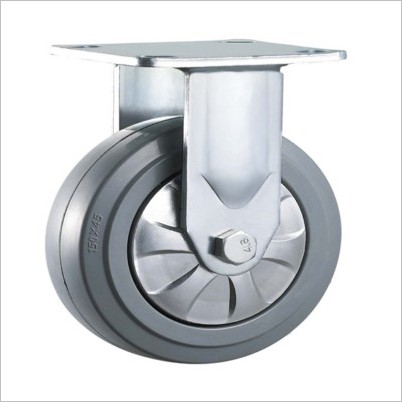

heavy duty trolley wheels OY3-R100-FGZ rubber 100mm 50mm 190kg 142mm 84*72mm 115*99mm
OY3-R125-FGZ rubber 125mm 50mm 220kg 163mm
OY3-R150-FGZ rubber 150mm 50mm 250kg 193mm
OY3-R200-FGZ rubber 200mm 50mm 300kg 240mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size

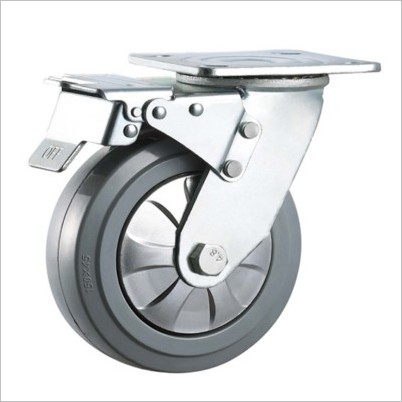

heavy duty trolley wheels OY3-R100-BGZ rubber 100mm 50mm 190kg 142mm 84*72mm 115*99mm
OY3-R125-BGZ rubber 125mm 50mm 220kg 163mm
OY3-R150-BGZ rubber 150mm 50mm 250kg 193mm
OY3-R200-BGZ rubber 200mm 50mm 300kg 240mm

heavy duty trolley wheels

heavy duty trolley wheels
