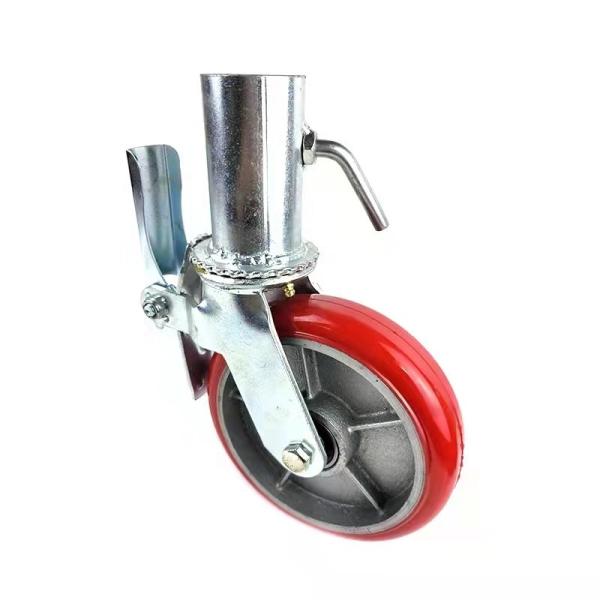

Scaffold Castors With Hollow Tube

Model Number : S-T-PU200

Place of Origin : China

MOQ : 500pcs

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 2000pcs per day

Delivery Time : 5-7 working days

Packaging Details : stardard export carton

name : scaffold castor wheels

application : construction industry

guarantee : one year under normal condition use

material : moldon PU wheel

diameter : 8 inch

tread width : 50mm

tube inner diameter : 55mm

tube outer diameter : 60mm

tube length : 100mm

load capacity : 300kgs

bearing : roller caster

surface treatment : zinc plated

Contact Now

scaffolding caster with hollow screw

DESCRIPTION

Heavy duty scaffold PU caster, double-locking caster wheels. Designed to prevent damage to floor surfaces, the smooth rolling casters are non-marking and easily roll over extension cords for safe, convenient use around the jobsite.

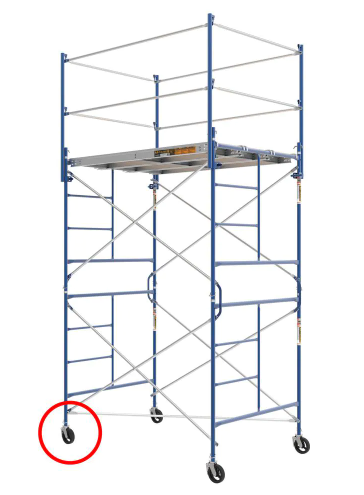

Heavy-duty casters attach to frame leg and outrigger to mobilize your scaffolding unit

Diameter available: 150mm x 50mm or 200mm x 50mm
Loading Capacity: 250-300kg
Hollow tube stem size: 55mm ID ,60mm OD and 100mm length

Wheel material:moldon rubber wheel,polyurethane wheel and nylon wheel

Technical parameters

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Tube stem inner diameter	Tube stem outer diameter	Tube stem length	Bracket thickness
	S-T-R150	rubber	150mm	50mm	250kg	190mm	55mm	60mm	100mm	4.5
	S-T-R200	rubber	200mm	50mm	300kg	230mm	55mm	60mm	100mm	4.5

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Tube stem inner diameter	Tube stem outer diameter	Tube stem length	Bracket thickness
	S-T-R150	rubber	150mm	50mm	250kg	190mm	55mm	60mm	100mm	5.5
	S-T-R200	rubber	200mm	50mm	300kg	230mm	55mm	60mm	100mm	5.5

Scaffold Castors With Hollow Tube

Product Tags:

PU Wheel Scaffold Castor

8 Inch Scaffold Caster

300kgs Load Scaffold Caster

Quality Scaffold Castors With Hollow Tube wholesale
