Heavy Duty Aluminium Core PU Wheel

Product Categories
Shenzhen Oh Yeah Technology Company Limited
Contact Now

Heavy Duty Aluminium Core PU Wheel

Model Number : OY3-PU100-BOZ

Place of Origin : China

MOQ : 300pcs

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500 pcs per day

Delivery Time : 5-7 working days

Packaging Details : stardard export carton

name : heavy duty castors

guarantee : one year under normal condition use

tread : orange PU

wheel core : aluminium

diameter : 100mm,125mm,150mm and 200mm

load capacity : 250kgs

plate type : swivel caster wheels

braket thickness : 4.5mm or 5.5mm

bearing : precision double ball bearing

plate finish : zinc plated

Contact Now

heavy duty polyurethane on aluminium caster

Product description

Wheel diameter :4 inch,5 inch ,6inch and 8inch
Wheel width :2 inch
Load capacity :600lbs
Wheel material :polyurethane

Wheel core:aluminium

Bolt hole spacing :84*72mm
Plate size :115*99mm
Bearing :precision roller ball
Finish/Coating: bright zinc plated
Additional Information Fair Floor Protection; Impact Resistant; Moisture Resistant; Quiet Operation

Application: furniture,industrial trolley wheels,gate caster ,heavy duty equipment and platform

PU on aluminium wheels rolls smoothly ,perfect for all floors . 5.5mm thick housing and swivel top plate to support heavy duty load capacity .Good quality precision roller ball bearing . Corrosion resistant steel with bright zinc plated finish

Technical parameters

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
Heavy Duty Aluminium Core PU Wheel OY3-PU100-SOZ PU 100mm 50mm 190kg 142mm 84*72mm 115*99mm
OY3-PU125-SOZ PU 125mm 50mm 220kg 163mm
OY3-PU150-SOZ PU 150mm 50mm 250kg 193mm
OY3-PU200-SRZ PU 200mm 50mm 300kg 240mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
Heavy Duty Aluminium Core PU Wheel OY3-PU100-FOZ PU 100mm 50mm 190kg 142mm 84*72mm 115*99mm
OY3-PU125-FOZ PU 125mm 50mm 220kg 163mm
OY3-PU150-FOZ PU 150mm 50mm 250kg 193mm
OY3-PU200-FOZ PU 200mm 50mm 300kg 240mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
Heavy Duty Aluminium Core PU Wheel OY3-PU100-BOZ PU 100mm 50mm 190kg 142mm 84*72mm 115*99mm
OY3-PU125-BOZ PU 125mm 50mm 220kg 163mm
OY3-PU150-BOZ PU 150mm 50mm 250kg 193mm
OY3-PU200-BOZ PU 200mm 50mm 300kg 240mm

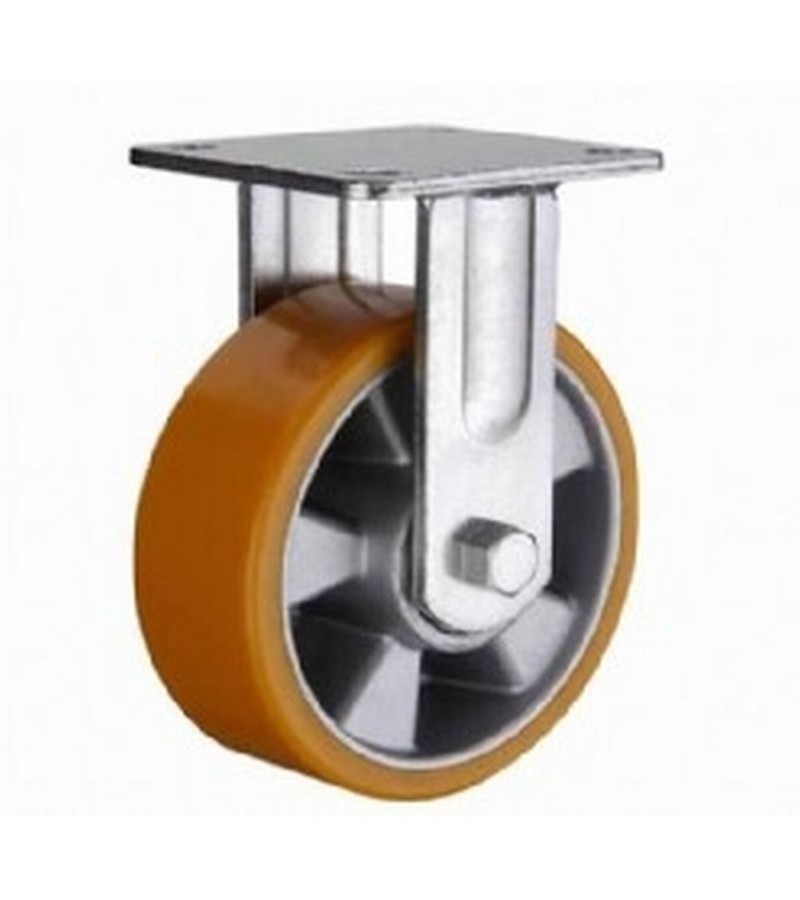

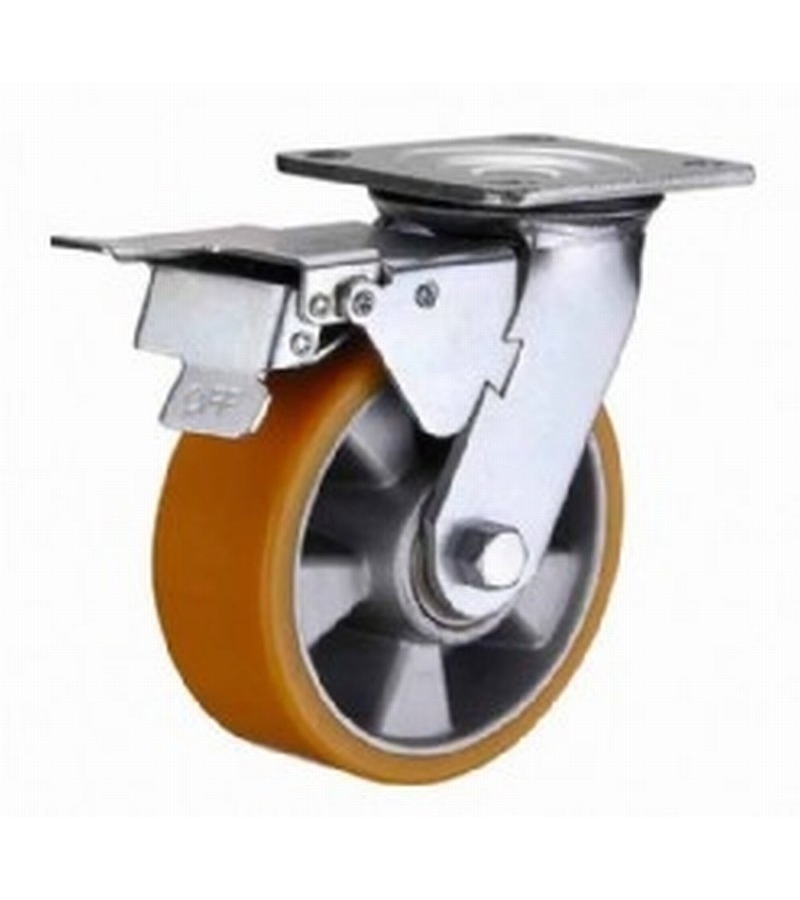

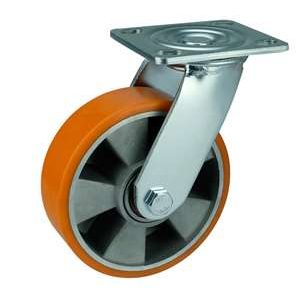

Heavy Duty Aluminium Core PU Wheel

Heavy Duty Aluminium Core PU Wheel
