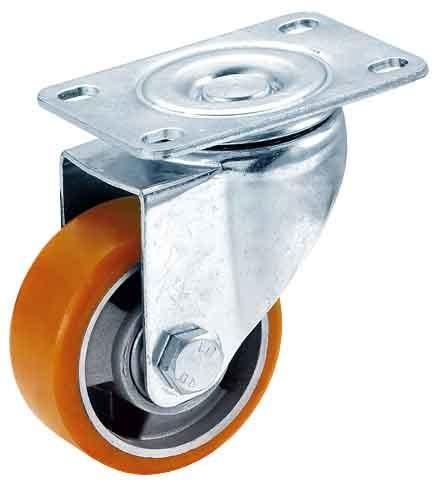

Polyurethane On Aluminium Caster 3 Inch

Model Number : OY2-PU75-SOZ

Place of Origin : China

MOQ : 2000pcs

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 20000pcs per day

Delivery Time : 5-7 working days

Packaging Details : stardard export carton

plate type : 4 inch orange PU caster wheel

application : trolley wheel

guarantee : one year under normal condition use

material : orange polyurethane

diameter : 3 inch / 4inch / 5inch

load capacity : 100kgs

hole spacing : 75*45mm

top plate : 95*65mm

bearing : double ball

surface treatment : zinc plated

Contact Now

yellow polyurethane aluminium caster wheel

Description:

Diameter:75mm,100mm or 125mm

Material:orange polyurethane wheel,aluminium core

Wheel tread width: 32mm ( 1 1/4 inch )

Load capacity:100kgs

Mounting hole :75*45mm

Plate size :95*65mm

Total height:105mm/130mm/150mm

Bearing: precision double ball 6001

Surface treatment: galvanized zinc steel

Features:

Good quality wear resistant polyurethane wheel on aluminium core, rolls smoothly and perfect on all kind of floors

Precision ouble ball bearing and thick housing to supply stronger load capacity

Anti corrossion zinc coated steel to support long service life

Technical parameters

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Hole spacing	Top plate size	Bracket thickness
	OY2-PU75-SOZ	PU	75mm	32mm	90kg	105mm	75*45mm	96*65mm	2.3
	OY2-PU100-SOZ	PU	100mm	32mm	100kg	128mm	75*45mm	96*65mm	2.3
	OY2-PU125-SOZ	PU	125mm	32mm	110kg	149mm	75*45mm	96*65mm	2.3

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Hole spacing	Top plate size	Bracket thickness
	OY2-PU75-FOZ	PU	75mm	32mm	90kg	105mm	75*45mm	96*65mm	2.3
	OY2-PU100-FOZ	PU	100mm	32mm	100kg	128mm	75*45mm	96*65mm	2.3
	OY2-PU125-FOZ	PU	125mm	32mm	110kg	149mm	75*45mm	96*65mm	2.3

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Hole spacing	Top plate size	Bracket thickness
	OY2-PU75-BOZ	PU	75mm	32mm	90kg	105mm	75*45mm	96*65mm	2.3
	OY2-PU100-BOZ	PU	100mm	32mm	100kg	128mm	75*45mm	96*65mm	2.3
	OY2-PU125-BOZ	PU	125mm	32mm	110kg	149mm	75*45mm	96*65mm	2.3
